Flat

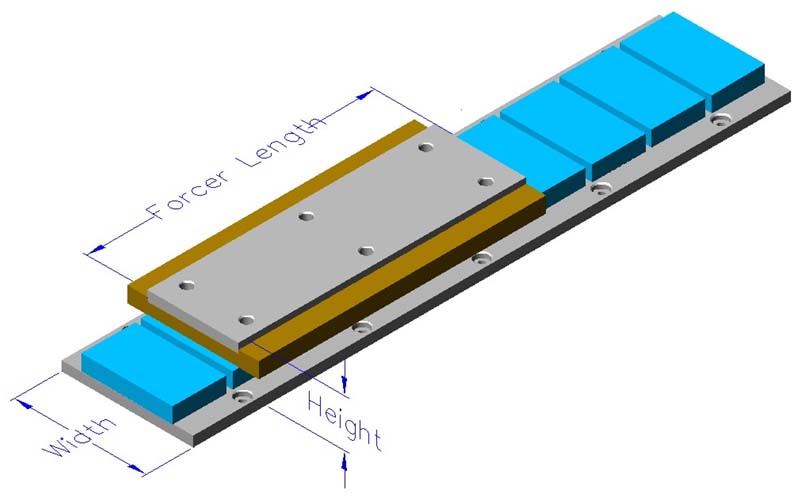

Flat slotless iron core linear brushless motors
|
Type
|
Number of Series
|
Cross-Section, Min., mm
|
Cross-Section, Max., mm
|
|
Flat slotless iron core linear brushless
motors, natural cooling
|
56
|
5.0 x 15.0
|
88.9 x 338.0
|
|
Flat slotless iron core linear brushless
motors, water cooling
|
40
|
26.8 x 63.0
|
117.5 x 351.0
|
|
Series
|
Height, mm
|
Width, mm
|
Cooling
|
Shape
|
Type
|
|
|
|
|
LM-332
|
5.0
|
15.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-333
|
8.5
|
20.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-334
|
8.5
|
30.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-335
|
8.5
|
40.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-336
|
8.5
|
50.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-337
|
10.6
|
18.1
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-338
|
10.6
|
40.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-339
|
10.6
|
60.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-340
|
10.6
|
80.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-341
|
15.9
|
38.1
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-342
|
15.9
|
60.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-343
|
15.9
|
80.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-344
|
15.9
|
100.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-345
|
19.1
|
38.1
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-346
|
19.1
|
50.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-347
|
19.1
|
75.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-348
|
19.1
|
100.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-349
|
22.2
|
52.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-358
|
31.8
|
47.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-359
|
31.8
|
57.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-360
|
31.8
|
97.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-361
|
31.8
|
137.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-375
|
35.0
|
47.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-377
|
35.0
|
87.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-378
|
35.0
|
117.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-379
|
35.0
|
147.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-383
|
36.4
|
66.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-409
|
41.4
|
54.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-410
|
41.4
|
74.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-411
|
41.4
|
94.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-412
|
41.4
|
114.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-415
|
43.0
|
144.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-416
|
43.0
|
174.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-417
|
43.0
|
204.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-431
|
50.8
|
54.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-432
|
50.8
|
74.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-433
|
50.8
|
94.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-434
|
50.8
|
114.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-442
|
52.4
|
152.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-443
|
52.4
|
202.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-444
|
52.4
|
252.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-456
|
54.0
|
302.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-477
|
57.0
|
62.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-478
|
57.0
|
82.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-479
|
57.0
|
102.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-480
|
57.0
|
122.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-510
|
60.0
|
172.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-514
|
60.0
|
222.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-523
|
62.0
|
272.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-534
|
82.6
|
136.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-535
|
82.6
|
186.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-536
|
82.6
|
236.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-537
|
84.6
|
286.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-538
|
84.6
|
336.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-539
|
88.9
|
288.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
|
LM-540
|
88.9
|
338.0
|
Natural Cooling
|
Flat
|
Slotless
|
|
Flat slotless iron core linear brushless motors, water cooling
|
Series
|
Height, mm
|
Width, mm
|
Cooling
|
Shape
|
Type
|
|
|
|
|
LM-541
|
26.8
|
63.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-543
|
33.7
|
102.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-545
|
33.7
|
140.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-547
|
34.9
|
52.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-554
|
44.5
|
57.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-555
|
44.5
|
97.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-556
|
44.5
|
137.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-558
|
47.7
|
87.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-559
|
47.7
|
117.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-560
|
47.7
|
147.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-561
|
48.3
|
66.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-576
|
54.1
|
54.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-577
|
54.1
|
74.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-578
|
54.1
|
94.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-579
|
54.1
|
114.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-586
|
55.7
|
144.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-587
|
55.7
|
174.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-588
|
55.7
|
204.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-609
|
63.5
|
54.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-610
|
63.5
|
74.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-611
|
63.5
|
94.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-612
|
63.5
|
114.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-617
|
65.1
|
152.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-618
|
65.1
|
202.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-619
|
65.1
|
252.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-625
|
66.7
|
302.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-626
|
68.0
|
62.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-627
|
68.0
|
82.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-628
|
68.0
|
102.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-629
|
68.0
|
122.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-633
|
71.0
|
172.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-634
|
71.0
|
222.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-637
|
73.0
|
272.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-658
|
95.3
|
136.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-659
|
95.3
|
186.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-660
|
95.3
|
236.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-661
|
97.3
|
286.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-662
|
97.3
|
336.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-664
|
101.6
|
288.0
|
Water Cooling
|
Flat
|
Slotless
|
|
|
LM-665
|
101.6
|
338.0
|
Water Cooling
|
Flat
|
Slotless
|
|
Flat

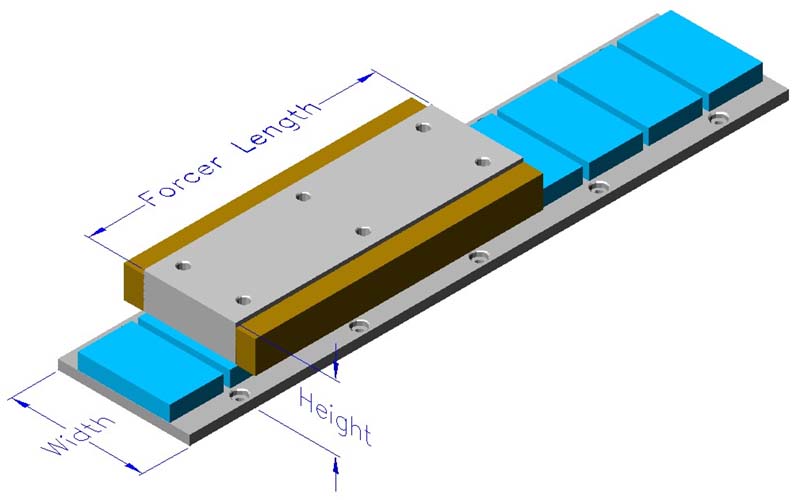

Flat slotted iron core linear brushless motors
|
Type
|
Number of Series
|
Cross-Section, Min., mm
|
Cross-Section, Max., mm
|
|
Flat slotted iron core linear brushless
motors,
natural cooling
|
38
|
24.0 x 58.0
|
88.9 x 338.0
|
|
Flat slotted iron core linear brushless
motors,
water cooling
|
36
|
40.0 x 51.0
|
117.5 x 351.0
|
|
Series
|
Height, mm
|
Width, mm
|
Cooling
|
Shape
|
Type
|
|
|
|
|
LM-1652
|
31.8
|
47.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1653
|
31.8
|
57.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1662
|
33.8
|
97.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1663
|
33.8
|
137.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1667
|
35.0
|
47.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1669
|
35.0
|
87.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1673
|
36.4
|
66.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1681
|
37.0
|
117.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1682
|
37.0
|
147.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1700
|
41.4
|
54.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1701
|
41.4
|
74.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1704
|
43.4
|
94.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1705
|
43.4
|
114.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1712
|
45.4
|
144.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1713
|
45.4
|
174.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1714
|
45.4
|
204.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1722
|
50.8
|
54.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1723
|
50.8
|
74.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1731
|
52.8
|
94.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1732
|
52.8
|
114.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1753
|
54.8
|
152.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1754
|
54.8
|
202.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1766
|
56.8
|
252.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1767
|
57.0
|
62.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1768
|
57.0
|
82.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1797
|
58.8
|
302.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1798
|
59.0
|
102.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1799
|
59.0
|
122.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1801
|
60.0
|
172.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1805
|
60.0
|
222.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1814
|
62.0
|
272.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1825
|
82.6
|
136.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1826
|
82.6
|
186.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1827
|
84.6
|
236.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1828
|
86.6
|
286.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1829
|
88.6
|
336.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1830
|
88.9
|
288.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
LM-1831
|
88.9
|
338.0
|
Natural Cooling
|
Flat
|
Slotted
|
|
|
Series
|
Height, mm
|
Width, mm
|
Cooling
|
Shape
|
Type
|
|
|
|
|
LM-1838
|
44.5
|
57.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1839
|
46.5
|
97.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1840
|
46.5
|
137.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1842
|
47.7
|
87.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1843
|
48.3
|
66.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1844
|
49.7
|
117.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1845
|
49.7
|
147.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1860
|
54.1
|
54.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1861
|
54.1
|
74.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1870
|
56.1
|
94.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1871
|
56.1
|
114.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1874
|
58.1
|
144.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1875
|
58.1
|
174.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1876
|
58.1
|
204.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1893
|
63.5
|
54.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1894
|
63.5
|
74.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1899
|
65.5
|
94.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1900
|
65.5
|
114.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1906
|
67.5
|
152.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1907
|
67.5
|
202.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1909
|
69.5
|
252.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1910
|
69.7
|
62.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1911
|
69.7
|
82.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1914
|
71.0
|
172.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1915
|
71.0
|
222.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1916
|
71.5
|
302.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1917
|
71.7
|
102.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1918
|
71.7
|
122.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1921
|
73.0
|
272.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1942
|
95.3
|
136.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1943
|
95.3
|
186.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1944
|
97.3
|
236.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1945
|
99.3
|
286.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1946
|
101.3
|
336.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1948
|
101.6
|
288.0
|
Water Cooling
|
Flat
|
Slotted
|
|
|
LM-1949
|
101.6
|
338.0
|
Water Cooling
|
Flat
|
Slotted
|
|
