U-Shape
U-Shape ironless linear brushless motors
|
Type
|
Number of Series
|

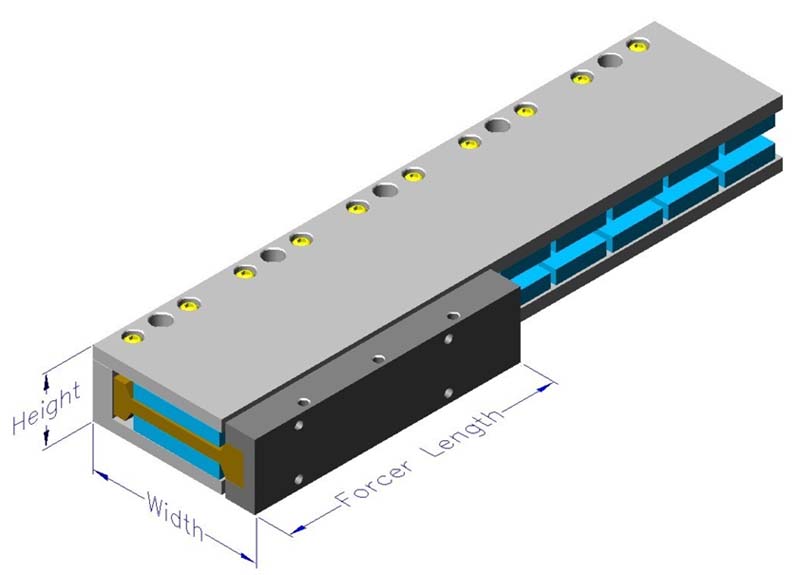

Cross-Section, Min., mm
|
Cross-Section, Max., mm
|
|
U-Shape ironless linear brushless motors,
natural cooling
|
37
|
10.6 x 18.1
|
88.9 x 288.0
|
|
U-Shape ironless linear brushless motors,
compressed air cooling
|
23
|
20.8 x 40.6
|
88.9 x 288.0
|
|
U-Shape ironless linear brushless motors,
water cooling
|
5
|
28.0 x 57.0
|
88.9 x 288.0
|
U-Shape ironless linear brushless motors,
natural cooling
|
Series
|
Height, mm
|
Width, mm
|
Cooling
|
Shape
|
Type
|
|
|
|
|
LM-101
|
10.6
|
18.1
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-103
|
15.9
|
38.1
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-107
|
19.1
|
38.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-111
|
19.1
|
50.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-115
|
20.8
|
52.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-123
|
22.2
|
52.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-127
|
25.4
|
52.1
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-129
|
25.4
|
67.3
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-133
|
25.4
|
78.5
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-135
|
25.4
|
87.3
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-139
|
25.4
|
98.5
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-152
|
30.0
|
123.5
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-159
|
31.8
|
57.2
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-162
|
31.8
|
78.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-164
|
31.8
|
98.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-176
|
34.0
|
95.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-178
|
34.0
|
148.5
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-187
|
35.0
|
87.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-194
|
37.0
|
100.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-196
|
37.0
|
150.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-198
|
37.8
|
80.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-206
|
40.4
|
80.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-208
|
40.4
|
100.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-210
|
41.1
|
130.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-212
|
41.1
|
155.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-214
|
41.4
|
114.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-216
|
43.7
|
130.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-218
|
43.7
|
155.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-227
|
50.8
|
114.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-232
|
50.8
|
152.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-236
|
51.3
|
80.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-238
|
51.3
|
100.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-240
|
51.3
|
130.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-242
|
51.3
|
155.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-244
|
64.0
|
178.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-246
|
82.6
|
236.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
|
LM-247
|
88.9
|
288.0
|
Natural Cooling
|
U-Shape
|
Ironless
|
|
U-Shape ironless linear brushless motors,
compressed air cooling
|
Series
|
Height, mm
|
Width, mm
|
Cooling
|
Shape
|
Type
|
|
|
|
|
LM-249
|
20.8
|
52.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-252
|
22.2
|
56.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-258
|
31.8
|
61.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-268
|
35.0
|
87.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-271
|
37.8
|
80.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-273
|
37.8
|
100.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-277
|
40.4
|
80.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-279
|
40.4
|
100.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-281
|
41.1
|
130.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-283
|
41.1
|
155.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-285
|
41.4
|
114.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-286
|
43.7
|
130.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-288
|
43.7
|
155.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-290
|
50.8
|
114.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-294
|
50.8
|
152.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-298
|
51.3
|
80.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-300
|
51.3
|
100.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-302
|
51.3
|
130.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-304
|
51.3
|
155.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-306
|
63.5
|
178.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-308
|
64.0
|
184.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-309
|
82.6
|
236.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
|
LM-310
|
88.9
|
288.0
|
Compressed Air Cooling
|
U-Shape
|
Ironless
|
|
U-Shape ironless linear brushless motors,
water cooling
|
Series
|
Height, mm
|
Width, mm
|
Cooling
|
Shape
|
Type
|
|
|
|
|
LM-316
|
50.8
|
114.0
|
Water Cooling
|
U-Shape
|
Ironless
|
|
|
LM-317
|
50.8
|
152.0
|
Water Cooling
|
U-Shape
|
Ironless
|
|
|
LM-319
|
64.0
|
190.0
|
Water Cooling
|
U-Shape
|
Ironless
|
|
|
LM-320
|
82.6
|
236.0
|
Water Cooling
|
U-Shape
|
Ironless
|
|
|
LM-321
|
88.9
|
288.0
|
Water Cooling
|
U-Shape
|
Ironless
|
|
